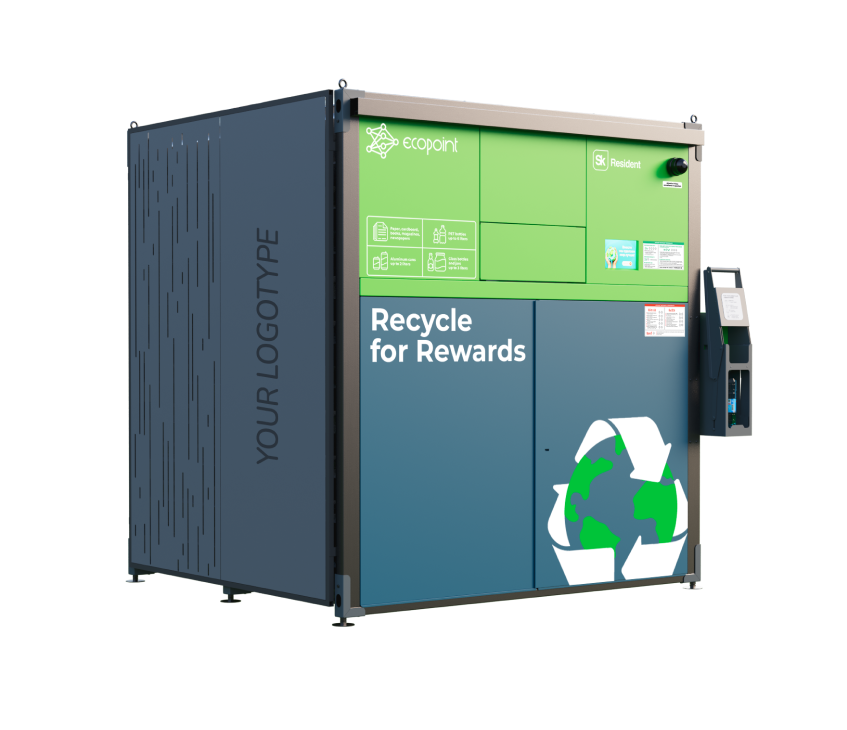

EcoPoint Reverse Vending Machine Outdoor
  • Vandal and weather-proof dismountable housing
  • Hand crusher for bottles/cans included
  • LED front lighting
  • Extensive customization options for branding and advertising placement
  • Storage container (big bag) with a capacity of 4.2 m³ on a roll-out trolley with a lifting capacity of up to 500 kg
  • Automatic sorter for 4 storage containers with a capacity of 0.5 m³ (optional)
EcoPoint Reverse Vending Machine Outdoor

This street version is the optimal RVM solution in terms of business profitability. The machine has an all-weather dismountable housing. The standard kit includes two replaceable storage containers for recyclable materials (big bags) with a capacity of 4.2 m³, which are mounted on a roll-out trolley with a maximum load of 500 kg. Acceptable materials are detected using three-dimensional machine vision and a pre-trained neural network. When assessing the value of collected materials, the weight of the items and the degree of their crushing (for plastic and aluminum containers) are taken into account.


The machine is equipped with a large loading bay, which allows for the collection of several items at once. The kit also includes a hand crusher for bottles and cans. This model has many customization options for branding, including colored finishes, printed graphics and running lines. Advertising clips can be run on an optional built-in video screen. The machine can be also equipped with a device for automatic sorting into 4 storage bags, as well as with autonomous power supply (solar batteries). This model is best located near residential buildings, shopping and office centers, on the territory of gas stations, open parking lots, etc.

Recyclable materials that can be accepted
Technical specifications
Overall dimensions of the body (HxWxD)2300 х 2200 х 2000 mm
Overall dimensions of the hand crusher for plastic and aluminum containers (HxWxD)920 х 265 х 275 cm
Weight of the machine, including the hand crusherbelow 450 kg
Type of housingdismountable, vandal and weather-proof
Housing materialgalvanized steel, powder-coated steel
Volume of the loading bay for recyclables70 liters
Amount of containers accepted per sessionup to 20 containers in one layer
Maximum weight accepted per sessionup to 10 kg
Container reception speedup to 60 items per minute
Capacity of the storage device (big bag)4.2 m3, up to 500 kg
Power supplyAC/DC 220 V 50 Hz
Number of phases of the power supply network1+N+PE
Power capacity200 W
Internet traffic consumption3 Gb per month, excluding Internet traffic for video surveillance (optional)
Degree of protection of the electrical equipment of the machineIP 54
Operating temperaturefrom -20°С to +45°С, with relative air humidity up to 95%
Standard kit EcoPoint RVM Outdoor
  • Universal loading module complete with electronic control system and computer vision system
  • 10" touch screen
  • 4G LTE router for two SIM cards and RJ45 connector for ethernet cable
  • Electricity consumption meter
  • Mountable hand crusher for bottles and cans
  • Roll-out trolley with a maximum load of 500 kg, ramps for rolling out the trolley
  • Two replaceable big bags for the storage of recyclables, capacity 4.2 m³
  • LED backlighting of the front side of the machine
  • Mast for fastening the power cable
  • A set of keys for the lock to service the machine and unload the collected recyclables
  • A wrench to adjust the machine's housing supports
  • Self-triggering powder fire extinguisher
options
Automatic sorter for 4 storage bags with a capacity of 0.5 m³ each and two sets of bags (8 pcs.)

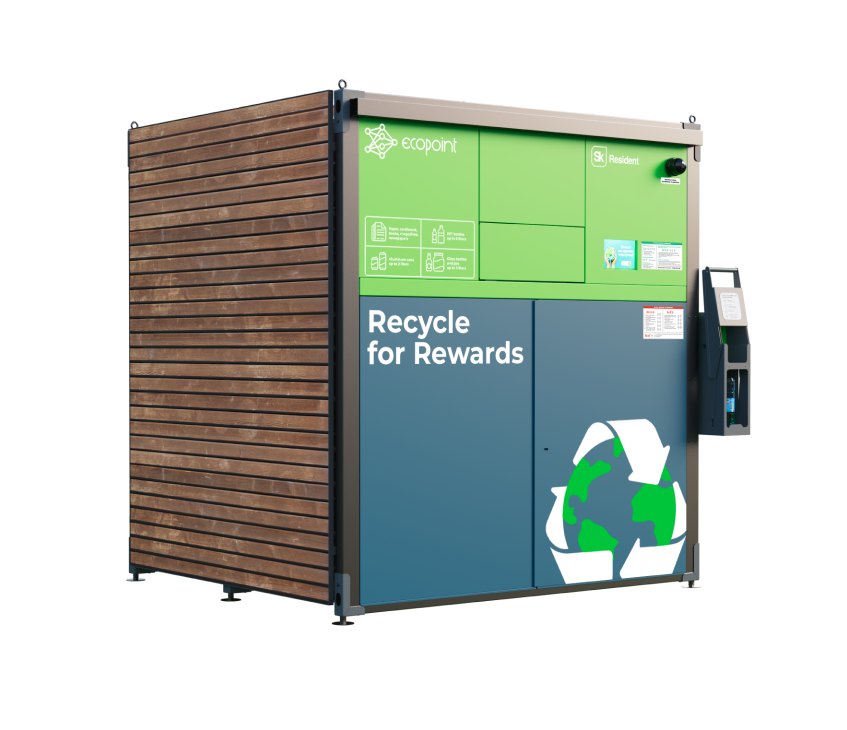

A set of false panels with a facing wooden strip for the side and rear walls of the machine
Branding of the housing (painting the panels of the machine and stiffeners in different colors, decorating the front panels according to a customized design)

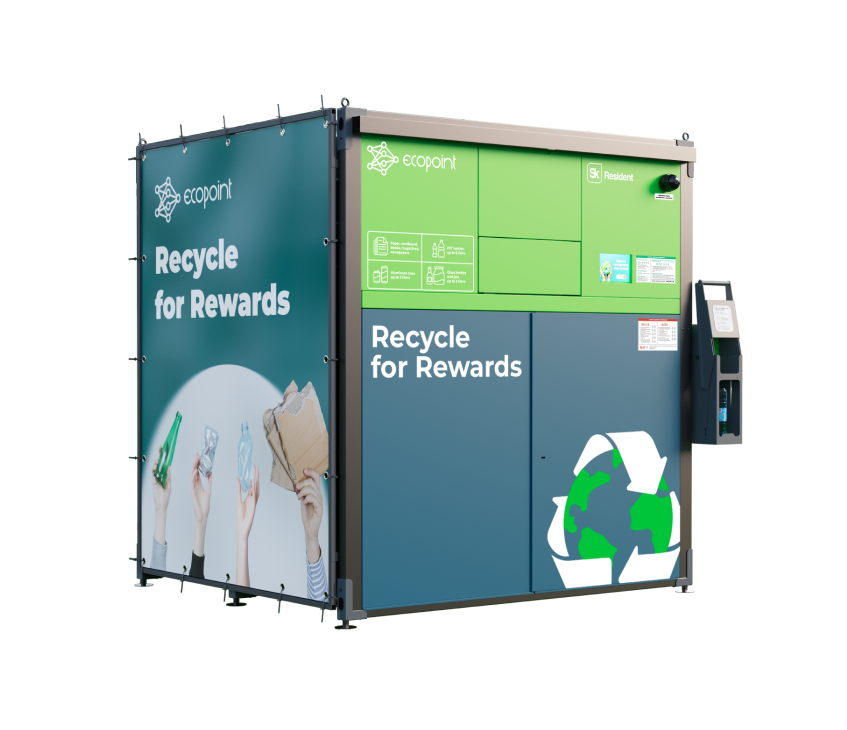

A set of metal frames for attaching advertising banners to the side and rear walls of the machine
Device for extracting a trolley with a big bag on a support wheel
A set of metal false panels for the side and rear walls of the device with the ability to apply a pattern or logo
Running line (custom-sized)
Video surveillance system
(video recorder with disk, video surveillance 2 cameras, power supply and cable set, protective box)
Solar power system
Advertising LED screen
(highly realistic image and fast response time without distortion of dynamic images)
